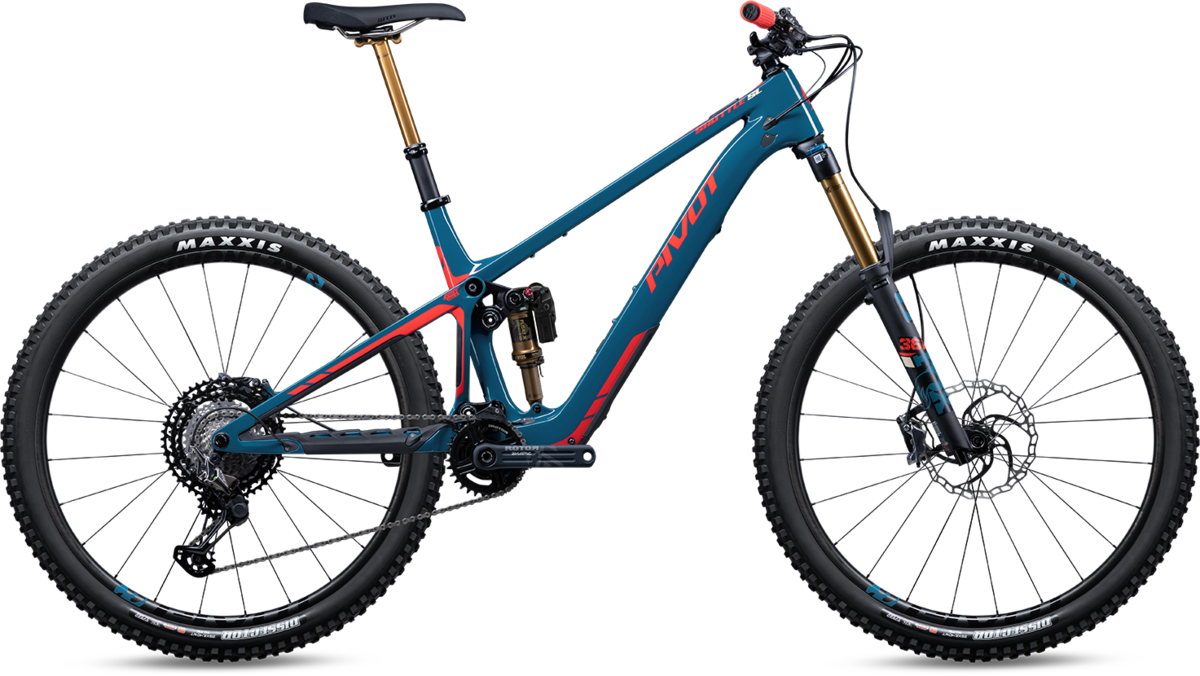

Pivot Cycles Shuttle SL 29 Team XTR Neo
$12,299.00
Details
- Sleek Full Carbon Hollow Core Frame
- Seamless Integrated FAZUA Ride 60 Drive System
- Progressive Trail Geometry
- Flip Chip Geometry Customization
- Size Specific Chainstay Lengths
- 132mm Travel DW-Link Suspension
- Trunnion Mounted Float X
- 150mm Fox Factory and Performance 36 Forks
- Trail gripping Maxxis Dissector Tires
- Full-size water bottle fits inside the front triangle
- Pivot’s Cable Port System
- 60 Nm of Torque/ 450 Watts Peak Power
- Integrated 430 Watt/Hour Battery
- Superlight System 9.25lbs (4.2kg)
- 3 Assist Levels + Boost Mode
- Drag-free pedaling without assist
- Magnetic Charging Port & Cover
- World Cup Build starting at 36.25 pounds (sub 17kg)
| Low BB | SM | MD | LG | XL | |
|---|---|---|---|---|---|
| A | Seat Tube Length (C-T) | 36.8 cm | 39.4 cm | 43.2 cm | 47 cm |
| B | Top Tube Length | 59.8 cm | 63.2 cm | 64.6 cm | 66 cm |
| C | Head Tube Length | 9.5 cm | 11.2 cm | 11.7 cm | 13 cm |
| D | Head Tube Angle | 65° | 65° | 65° | 65° |
| E | Seat Tube Angle (Eff.) | 76° | 76° | 76° | 76.8° |
| F | Chainstay Length | 43.2 cm | 43.2 cm | 43.4 cm | 43.8 cm |
| G | Bottom Bracket Height | 34.7 cm | 34.7 cm | 34.7 cm | 34.7 cm |
| H | Bottom Bracket Drop | 2.7 cm | 2.7 cm | 2.7 cm | 2.7 cm |
| I | Standover | 66.5 cm | 66.8 cm | 67.4 cm | 67.8 cm |
| J | Wheelbase | 118.6 cm | 122.3 cm | 124 cm | 127.2 cm |
| Stack | 61 cm | 62.6 cm | 63 cm | 64.2 cm | |
| Reach | 43.5 cm | 46.5 cm | 47.8 cm | 50 cm |
To ensure the best sizing, we recommend that you visit your local Pivot dealer to get a professional fit and refer to our geometry chart to check your measurements. We can, however, provide a rough guideline to get you started. These recommendations are based on our experience, athlete preference and customer feedback:
We suggest that you pick your size based on your riding style. The Shuttle SL features progressive long reach geometry with both short seat tube and head tube measurements per size – this geometry means that most riders can go up or down a size and should base their choice on riding-style, reach and stem length preferences. Be sure to also consult the Shuttle SL dropper post fit guide when making your selection.
| Small | 5'2" – 5'8" |
|---|---|
| Medium | 5'7" – 6'0" |
| Large | 5'10" – 6'2" |
| X-Large | 6'1" + |
We suggest that you pick your size based on your riding style. The Shuttle SL features progressive long reach geometry with both short seat tube and head tube measurements per size – this geometry means that most riders can go up or down a size and should base their choice on riding-style, reach and stem length preferences. Be sure to also consult the Shuttle SL dropper post fit guide when making your selection.
Specs
| Frame | Shuttle SL |
|---|---|
| Fork | Fox Factory 36 29", 44mm offset, GRIP2 - 150mm |
| Rear Shock | Fox Factory Float X Neo Live |
| Wheels | Reynolds Blacklabel 309/289 XC w/ Industry Nine Hydra hub 30mm F 28mm R - 29" 15x110 F/12x157 R |
| Tires | Maxxis Minion DHRII 29" x 2.4" WT, TR, 3C, EXO+, MAXXTERRA/Maxxis Dissector 29" x 2.4" WT, TR, 3C, EXO, MAXXTERRA |
| Crankset | ROTOR EKAPIC E-MTB 32t - 165mm |
| Shifters | Shimano XTR M9100 ISPEC EV 12-Speed |
| Rear Derailleur | Shimano XTR SGS 12-Speed |
| Cassette/Freewheel | Shimano XTR M9100 10-51t |
| Chain | Shimano CN-M9100 12-Speed |
| Brakes | Shimano XTR M9120 4-piston |
| Rotors | Galfer Rotor 203mm/Galfer Rotor 180mm |
| Handlebars | Phoenix Team Low Rise Carbon -780mm |
| Tape/Grips | Phoenix Factory Lock-On |
| Stem | Phoenix Team Enduro/Trail - 45mm |
| Headset | Pivot Precision Sealed Cartridge |
| Seatpost | Fox Transfer Factory Series 150mm (SM), 175mm (MD-LG), 200mm (XL) |
| Saddle | Pivot Pro E-Bike |
| Motor | FAZUA RIDE 60 |
* Subject to change without notice.
Videos
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Blue Denim / Small / 29-inch | 196338243308 | 00SSLV129CXRA--BLDSMDRPONSA1 |
| Blue Denim / Medium / 29-inch | 196338243261 | 00SSLV129CXRA--BLDMDDRPONSA1 |
| Blue Denim / Large / 29-inch | 196338243223 | 00SSLV129CXRA--BLDLGDRPONSA1 |
| Blue Denim / X-Large / 29-inch | 196338243346 | 00SSLV129CXRA--BLDXLDRPONSA1 |
| Aspen White / Small / 29-inch | 196338280587 | 00SSLV129CXRA--WHTSMDRPONSA1 |
| Aspen White / Medium / 29-inch | 196338280662 | 00SSLV129CXRA--WHTMDDRPONSA1 |
| Aspen White / Large / 29-inch | 196338280747 | 00SSLV129CXRA--WHTLGDRPONSA1 |
| Aspen White / X-Large / 29-inch | 196338280501 | 00SSLV129CXRA--WHTXLDRPONSA1 |
| Black Lime / Small / 29-inch | 196338243087 | 00SSLV129CXRA--BKLSMDRPONSA1 |
| Black Lime / Medium / 29-inch | 196338243001 | 00SSLV129CXRA--BKLMDDRPONSA1 |
| Black Lime / Large / 29-inch | 196338242929 | 00SSLV129CXRA--BKLLGDRPONSA1 |
| Black Lime / X-Large / 29-inch | 196338243162 | 00SSLV129CXRA--BKLXLDRPONSA1 |
| Desert Sage Green / Small / 29-inch | 196338243568 | 00SSLV129CXRA--DSGSMDRPONSA1 |
| Desert Sage Green / Medium / 29-inch | 196338243483 | 00SSLV129CXRA--DSGMDDRPONSA1 |
| Desert Sage Green / Large / 29-inch | 196338243407 | 00SSLV129CXRA--DSGLGDRPONSA1 |
| Desert Sage Green / X-Large / 29-inch | 196338243643 | 00SSLV129CXRA--DSGXLDRPONSA1 |
