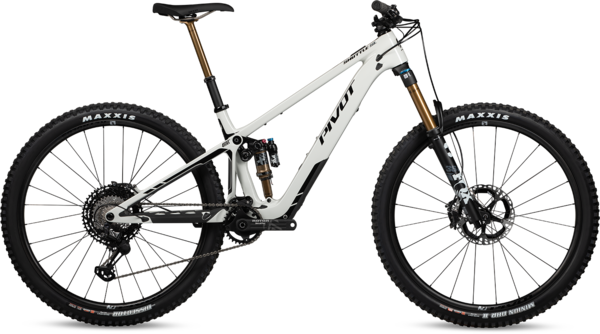

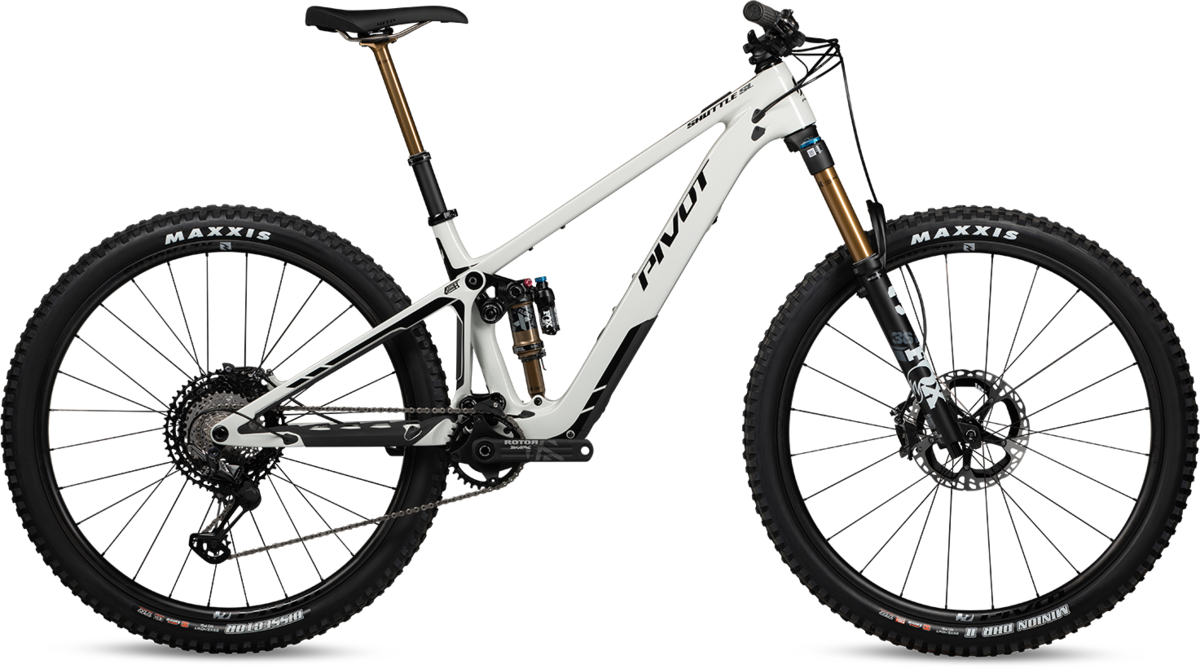

Pivot Cycles Shuttle SL 29 Team XTR

Pivot Cycles Shuttle SL 29 Team XTR
$10,999.00
Color: Aspen White
Size: Select size
Wheel Size: 29-inch
Please select options Unavailable
This product is not available for online purchase. Please call us or visit our store.

Details

- Sleek Full Carbon Hollow Core Frame
- Seamless Integrated FAZUA Ride 60 Drive System
- Progressive Trail Geometry
- Flip Chip Geometry Customization
- Size Specific Chainstay Lengths
- 132mm Travel DW-Link Suspension
- Trunnion Mounted Float X
- 150mm Fox Factory and Performance 36 Forks
- Trail gripping Maxxis Dissector Tires
- Full-size water bottle fits inside the front triangle
- Pivot’s Cable Port System
- 60 Nm of Torque/ 450 Watts Peak Power
- Integrated 430 Watt/Hour Battery
- Superlight System 9.25lbs (4.2kg)
- 3 Assist Levels + Boost Mode
- Drag-free pedaling without assist
- Magnetic Charging Port & Cover
- World Cup Build starting at 36.25 pounds (sub 17kg)

Geometry
Sizes:
Low BBSMMDLGXL
A Seat Tube Length (C-T) 36.8 cm 39.4 cm 43.2 cm 47 cm
B Top Tube Length 59.8 cm 63.2 cm 64.6 cm 66 cm
C Head Tube Length 9.5 cm 11.2 cm 11.7 cm 13 cm
D Head Tube Angle 65° 65° 65° 65°
E Seat Tube Angle (Eff.) 76° 76° 76° 76.8°
F Chainstay Length 43.2 cm 43.2 cm 43.4 cm 43.8 cm
G Bottom Bracket Height 34.7 cm 34.7 cm 34.7 cm 34.7 cm
H Bottom Bracket Drop 2.7 cm 2.7 cm 2.7 cm 2.7 cm
I Standover 66.5 cm 66.8 cm 67.4 cm 67.8 cm
J Wheelbase 118.6 cm 122.3 cm 124 cm 127.2 cm
Stack 61 cm 62.6 cm 63 cm 64.2 cm
Reach 43.5 cm 46.5 cm 47.8 cm 50 cm
To ensure the best sizing, we recommend that you visit your local Pivot dealer to get a professional fit and refer to our geometry chart to check your measurements. We can, however, provide a rough guideline to get you started. These recommendations are based on our experience, athlete preference and customer feedback:
Sizes:
Small5'2" – 5'8"
Medium 5'7" – 6'0"
Large 5'10" – 6'2"
X-Large 6'1" +

We suggest that you pick your size based on your riding style. The Shuttle SL features progressive long reach geometry with both short seat tube and head tube measurements per size – this geometry means that most riders can go up or down a size and should base their choice on riding-style, reach and stem length preferences. Be sure to also consult the Shuttle SL dropper post fit guide when making your selection.

Specs

Frame Shuttle SL
Fork Fox Factory 36 29", 44mm offset, GRIP2 - 150mm
Rear Shock Fox Factory Float X
Wheels Reynolds Blacklabel 309/289 XC w/ Industry Nine Hydra hub 30mm F 28mm R - 29" 15x110 F/12x157 R
Tires Maxxis Minion DHRII 29" x 2.4" WT, TR, 3C, EXO+, MAXXTERRA/Maxxis Dissector 29" x 2.4" WT, TR, 3C, EXO, MAXXTERRA
Crankset ROTOR EKAPIC E-MTB 32t - 165mm
Shifters Shimano XTR M9100 ISPEC EV 12-Speed
Rear Derailleur Shimano XTR SGS 12-Speed
Cassette/Freewheel Shimano XTR M9100 10-51t
Chain Shimano CN-M9100 12-Speed
Brakes Shimano XTR M9120 4-piston
Rotors Galfer Rotor 203mm/Galfer Rotor 180mm
Handlebars Phoenix Team Low Rise Carbon -780mm
Tape/Grips Phoenix Factory Lock-On
Stem Phoenix Team Enduro/Trail - 45mm
Headset Pivot Precision Sealed Cartridge
Seatpost Fox Transfer Factory Series 150mm (SM), 175mm (MD-LG), 200mm (XL)
Saddle Pivot Pro E-Bike
Motor FAZUA RIDE 60

* Subject to change without notice.

Videos

Part Numbers

Option UPC MPN
Aspen White / Small / 29-inch 196338280624 00SSLV129CXRA--WHTSMDRPCNSA1
Aspen White / Medium / 29-inch 196338280709 00SSLV129CXRA--WHTMDDRPCNSA1
Aspen White / Large / 29-inch 196338280785 00SSLV129CXRA--WHTLGDRPCNSA1
Aspen White / X-Large / 29-inch 196338280549 00SSLV129CXRA--WHTXLDRPCNSA1
