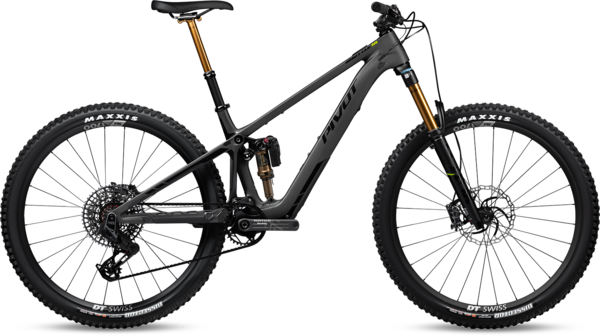

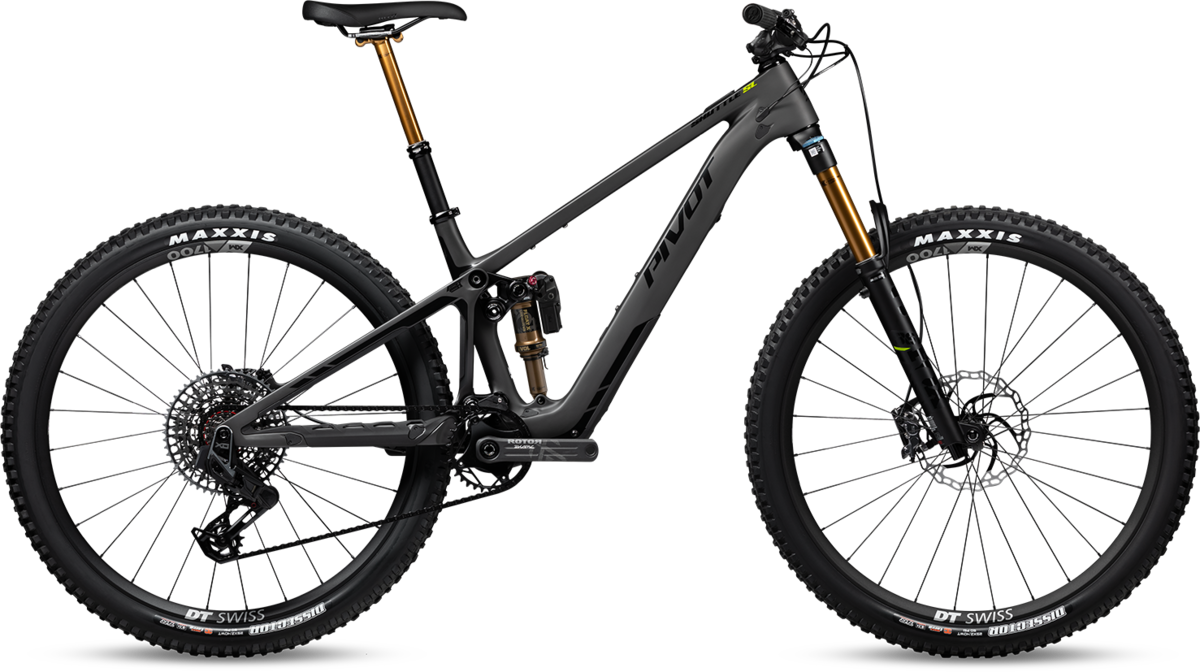

Pivot Cycles Shuttle SL 29 Pro X0 Eagle Transmission Neo

Pivot Cycles Shuttle SL 29 Pro X0 Eagle Transmission Neo
  • Color: Black Lime
  • Color: Blue Denim
  • Color: Desert Sage Green
  • Color: Aspen White
$11,499.00
Color:
Size: Select size
Wheel Size: 29-inch
Please select options Unavailable
This product is not available for online purchase. Please call us or visit our store.

Details

- Sleek Full Carbon Hollow Core Frame
- Seamless Integrated FAZUA Ride 60 Drive System
- Progressive Trail Geometry
- Flip Chip Geometry Customization
- Size Specific Chainstay Lengths
- 132mm Travel DW-Link Suspension
- Trunnion Mounted Float X
- 150mm Fox Factory and Performance 36 Forks
- Trail gripping Maxxis Dissector Tires
- Full-size water bottle fits inside the front triangle
- Pivot’s Cable Port System
- 60 Nm of Torque/ 450 Watts Peak Power
- Integrated 430 Watt/Hour Battery
- Superlight System 9.25lbs (4.2kg)
- 3 Assist Levels + Boost Mode
- Drag-free pedaling without assist
- Magnetic Charging Port & Cover
- World Cup Build starting at 36.25 pounds (sub 17kg)

Geometry
Sizes:
Low BBSMMDLGXL
A Seat Tube Length (C-T) 36.8 cm 39.4 cm 43.2 cm 47 cm
B Top Tube Length 59.8 cm 63.2 cm 64.6 cm 66 cm
C Head Tube Length 9.5 cm 11.2 cm 11.7 cm 13 cm
D Head Tube Angle 65° 65° 65° 65°
E Seat Tube Angle (Eff.) 76° 76° 76° 76.8°
F Chainstay Length 43.2 cm 43.2 cm 43.4 cm 43.8 cm
G Bottom Bracket Height 34.7 cm 34.7 cm 34.7 cm 34.7 cm
H Bottom Bracket Drop 2.7 cm 2.7 cm 2.7 cm 2.7 cm
I Standover 66.5 cm 66.8 cm 67.4 cm 67.8 cm
J Wheelbase 118.6 cm 122.3 cm 124 cm 127.2 cm
Stack 61 cm 62.6 cm 63 cm 64.2 cm
Reach 43.5 cm 46.5 cm 47.8 cm 50 cm
To ensure the best sizing, we recommend that you visit your local Pivot dealer to get a professional fit and refer to our geometry chart to check your measurements. We can, however, provide a rough guideline to get you started. These recommendations are based on our experience, athlete preference and customer feedback:
Sizes:
Small5'2" – 5'8"
Medium 5'7" – 6'0"
Large 5'10" – 6'2"
X-Large 6'1" +

We suggest that you pick your size based on your riding style. The Shuttle SL features progressive long reach geometry with both short seat tube and head tube measurements per size – this geometry means that most riders can go up or down a size and should base their choice on riding-style, reach and stem length preferences. Be sure to also consult the Shuttle SL dropper post fit guide when making your selection.

Specs

Frame Shuttle SL
Fork Fox Factory 36 29", 44mm offset, GRIP2 - 150mm
Rear Shock Fox Factory Float X
Wheels DT Swiss XM1700 w/ DT Swiss 350 hub & 36t Star Ratchet 30mm - 29" 15x110 F/12x157 R
Tires Maxxis Minion DHRII 29" x 2.4" WT, TR, 3C, EXO+, MAXXTERRA/Maxxis Dissector 29" x 2.4" WT, TR, 3C, EXO, MAXXTERRA
Crankset ROTOR EKAPIC E-MTB 34t - 165mm
Shifters Sram AXS Pod Controller
Rear Derailleur Sram X0 Eagle Transmission 12-Speed
Cassette/Freewheel Sram X0 1295 Eagle Transmission 10-52t
Chain Sram X0 Eagle Flattop 12-Speed
Brakes Shimano XT M8120 4-piston
Rotors Galfer Rotor 203mm/Galfer Rotor 180mm
Handlebars Phoenix Team Low Rise Carbon -780mm
Tape/Grips Phoenix Factory Lock-On
Stem Phoenix Team Enduro/Trail - 45mm
Headset Pivot Precision Sealed Cartridge
Seatpost Fox Transfer Factory Series 150mm (SM), 175mm (MD-LG), 200mm (XL)
Saddle Pivot Pro E-Bike
Motor FAZUA RIDE 60

* Subject to change without notice.

Videos

Part Numbers

Option UPC MPN
Black Lime / Small / 29-inch 196338242288 00SSLV129AXOB--BKLSMDRPONSA1
Black Lime / Medium / 29-inch 196338242202 00SSLV129AXOB--BKLMDDRPONSA1
Black Lime / Large / 29-inch 196338242134 00SSLV129AXOB--BKLLGDRPONSA1
Black Lime / X-Large / 29-inch 196338242363 00SSLV129AXOB--BKLXLDRPONSA1
Blue Denim / Small / 29-inch 196338242509 00SSLV129AXOB--BLDSMDRPONSA1
Blue Denim / Medium / 29-inch 196338242462 00SSLV129AXOB--BLDMDDRPONSA1
Blue Denim / Large / 29-inch 196338242424 00SSLV129AXOB--BLDLGDRPONSA1
Blue Denim / X-Large / 29-inch 196338242547 00SSLV129AXOB--BLDXLDRPONSA1
Desert Sage Green / Small / 29-inch 196338242769 00SSLV129AXOB--DSGSMDRPONSA1
Desert Sage Green / Medium / 29-inch 196338242684 00SSLV129AXOB--DSGMDDRPONSA1
Desert Sage Green / Large / 29-inch 196338242608 00SSLV129AXOB--DSGLGDRPONSA1
Desert Sage Green / X-Large / 29-inch 196338242844 00SSLV129AXOB--DSGXLDRPONSA1
Aspen White / Small / 29-inch 196338280907 00SSLV129AXOB--WHTSMDRPONSA1
Aspen White / Medium / 29-inch 196338280983 00SSLV129AXOB--WHTMDDRPONSA1
Aspen White / Large / 29-inch 196338281065 00SSLV129AXOB--WHTLGDRPONSA1
Aspen White / X-Large / 29-inch 196338280822 00SSLV129AXOB--WHTXLDRPONSA1
