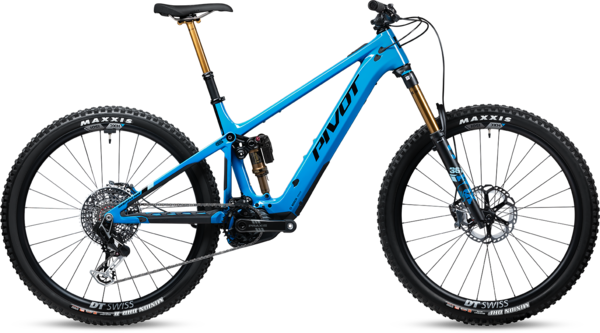

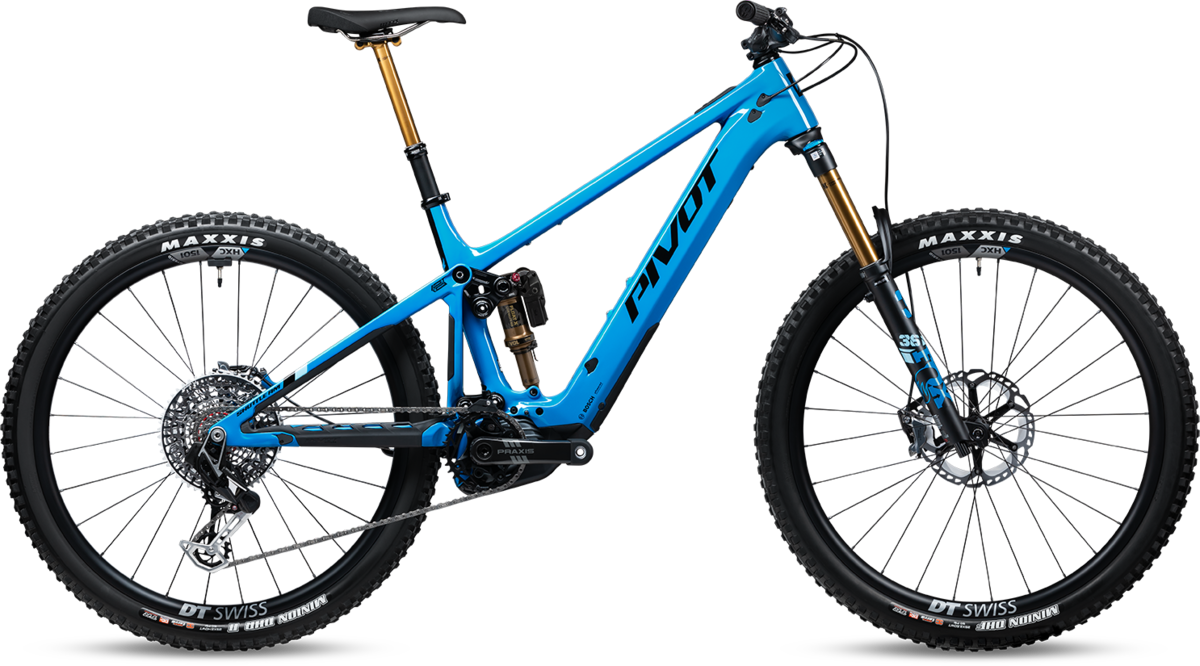

Pivot Cycles Shuttle AM Team XX Neo - Carbon Wheels
Details
The Shuttle AM doesn’t shy away from touting itself as an all-mountain masterpiece that dominates the realm of e-mountain performance. This awe-inspiring e-bike strikes the perfect chord, delivering an unmatched blend of lightweight agility and long-travel prowess that hits the all-mountain sweet spot.
Live Valve Neo constantly adapts to the trail, delivering optimized suspension settings in real-time. This cutting-edge system enhances your ride by automatically adjusting for both efficiency and control, so you can focus on pushing your limits. With Live Valve Neo, experience unmatched precision and a ride that’s perfectly tuned to the demands of the trail.
Product Details:
- Ultralight Hollow Core Carbon Frame
- Powerfully Smooth Bosch Performance Line CX Motor, CX Race Motor on Team Builds
- Long-range 750Wh Battery on Team and Pro Builds, 625Wh battery on Ride Builds
- Bosch 250wh PowerMore Range Extender Compatible
- Integrated Power and Mode Display
- Wheel Mounted Speed Sensor
- Wireless Bosch Remote
- 160mm Fox Factory and Performance 36 Forks
- Flip-Chip Upper Link Mount
- Mixed Wheel Compatible
- Pivot Dock Tool System Compatible
- Water Bottle Clearance on All Sizes
- Fox Factory Float X Shock with 148mm of Progressive Suspension Travel
- Injection Molded Rubberized Frame Protection
- Full Internal Routing with Pivot Cable Port System
| Size | Small | Medium | Large | X-Large |
|---|---|---|---|---|
| Geometry Position | Low / High | Low / High | Low / High | Low / High |
| Seat Tube Length (C-T) (cm) | 37.8 | 39.9 | 43.2 | 47 |
| Top Tube Length (cm) | 59.9 / 59.8 | 63.1 / 63 | 64.9 / 64.7 | 67.1 / 67 |
| Head Tube Length (cm) | 11 | 12 | 13 | 14 |
| Head Tube Angle | 64.1° / 64.5° | 64.1° / 64.5° | 64.1° / 64.5° | 64.1° / 64.5° |
| Seat Tube Angle | 76.4° / 76.8° | 76.4° / 76.8° | 76.4° / 76.8° | 76.4° / 76.8° |
| Chainstay Length (cm) | 44.4 | 44.4 | 44.4 | 44.4 |
| Bottom Bracket Height (cm) | 34.5 / 35 | 34.5 / 35 | 34.5 / 35 | 34.5 / 35 |
| Bottom Bracket Drop (cm) | 2.9 / 2.4 | 2.9 / 2.4 | 2.9 / 2.4 | 2.9 / 2.4 |
| Standover (cm) | 71.5 / 72 | 71.5 / 72 | 71.5 / 72 | 71.5 / 72 |
| Wheelbase (cm) | 121.7 / 121.6 | 125.1 / 125 | 127 / 126.9 | 129.5 / 129.4 |
| Stack (cm) | 63.2 / 62.9 | 64.2 / 63.8 | 65.1 / 64.7 | 66 / 65.6 |
| Reach (cm) | 43.1 / 43.5 | 46.1 / 46.5 | 47.6 / 48 | 49.6 / 50 |
| Frame Size | Rider Height (in) |
|---|---|
| Small | 5'2" – 5’7" |
| Medium | 5'7" – 5'11" |
| Large | 5'10" – 6'2' |
| X-Large | 6'1" + |
Specs
| Frame | Shuttle AM |
|---|---|
| Fork | Fox Factory 36 29", 44mm offset, GRIP X2 - 160mm |
| Rear Shock | Fox Factory Float X Neo Live |
| Wheels | DT Swiss Hybrid HXC1501 Carbon, 30mm - 29" 15x110 F/12x157 R |
| Tires |
Front: Maxxis Minion DHF 29" x 2.5" WT, TR, 3C, EXO+, MAXXTERRA Rear: Maxxis Minion DHRII 29" x 2.4" WT, TR, 3C, EXO+, MAXXTERRA |
| Crankset | Praxis Carbon eCranks E-MTB 34t - 160mm |
| Shifters | SRAM AXS Pod Controller |
| Rear Derailleur | SRAM XX Eagle Transmission 12-Speed |
| Cassette/Freewheel | SRAM XX 1297 Eagle Transmission 10-52t |
| Chain | SRAM XX Eagle Flattop 12-Speed |
| Brakes | SRAM Maven Ultimate 4-piston |
| Rotors | SRAM Centerline Centerlock - 200mm |
| Handlebars | Phoenix Race Low Rise Carbon - 780mm (SM-MD), 800mm (LG-XL) |
| Tape/Grips | Phoenix Factory Lock-On |
| Stem | Phoenix Team Enduro/Trail - 45mm |
| Headset | Pivot Precision Sealed Cartridge |
| Seatpost | Fox Transfer Factory Series 125-150mm (SM), 155-180mm (MD-LG), 185-210mm (XL) |
| Saddle | Phoenix WTB Team High Tail Trail (SM), Phoenix WTB Pro Volt Medium (MD), Pivot Team E-Bike (LG-XL) |
| Pedals | Sold Separately |
| Motor | Bosch Performance CX Race Edition 750wh |
* Subject to change without notice.
Videos
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Blue Neptune / Small / 29-inch | 196338244114 | 00SHTV629CXXB--BNSSMDRPONSA1 |
| Blue Neptune / Medium / 29-inch | 196338244077 | 00SHTV629CXXB--BNSMDDRPONSA1 |
| Blue Neptune / Large / 29-inch | 196338244039 | 00SHTV629CXXB--BNSLGDRPONSA1 |
| Blue Neptune / X-Large / 29-inch | 196338244152 | 00SHTV629CXXB--BNSXLDRPONSA1 |
| Mojave Willow Green / Small / 29-inch | 196338244275 | 00SHTV629CXXB--MWGSMDRPONSA1 |
| Mojave Willow Green / Medium / 29-inch | 196338244237 | 00SHTV629CXXB--MWGMDDRPONSA1 |
| Mojave Willow Green / Large / 29-inch | 196338244190 | 00SHTV629CXXB--MWGLGDRPONSA1 |
| Mojave Willow Green / X-Large / 29-inch | 196338244312 | 00SHTV629CXXB--MWGXLDRPONSA1 |
