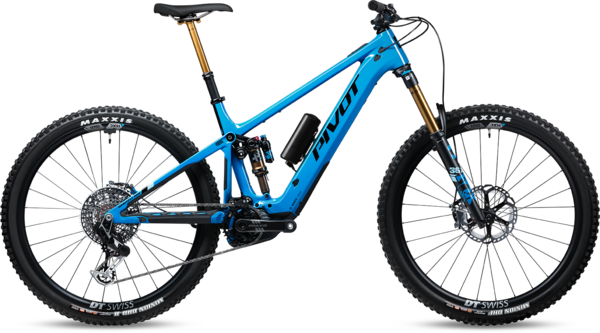

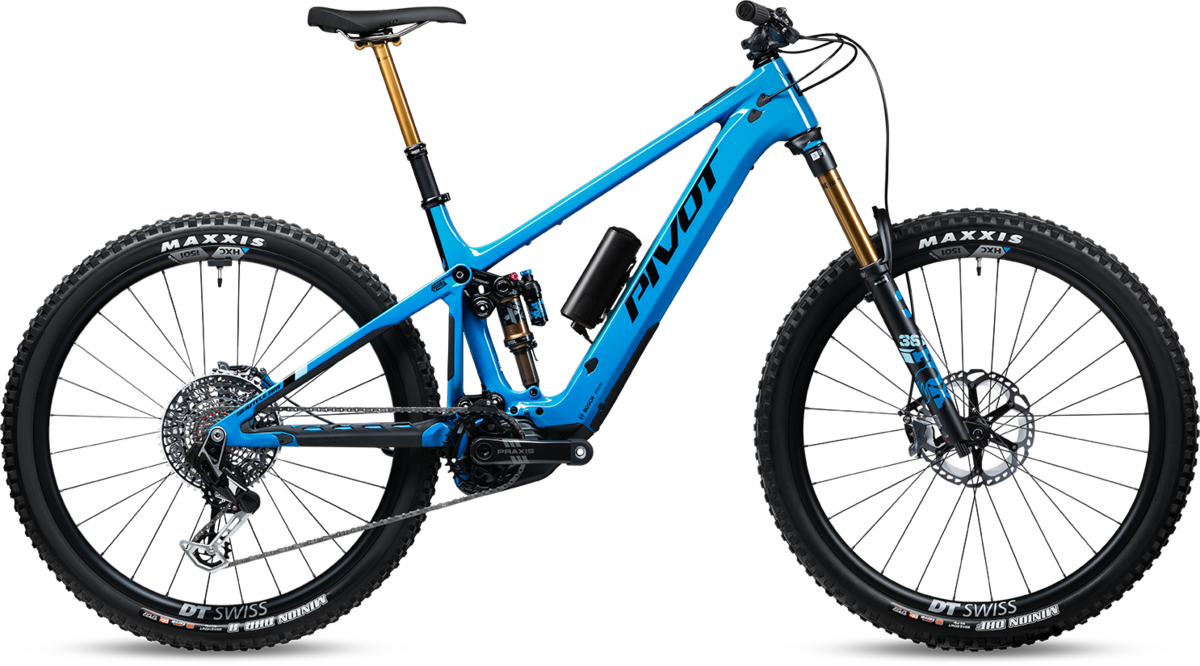

Pivot Cycles Shuttle AM Team XX - Carbon Wheels w/ Range Extender

Pivot Cycles Shuttle AM Team XX - Carbon Wheels w/ Range Extender
  • Color: Blue Neptune
  • Color: Mojave Willow Green
$13,099.00
Color:
Size: Select size
Wheel Size: 29-inch
Please select options Unavailable
This product is not available for online purchase. Please call us or visit our store.

Details

The Shuttle AM doesn’t shy away from touting itself as an all-mountain masterpiece that dominates the realm of e-mountain performance. This awe-inspiring e-bike strikes the perfect chord, delivering an unmatched blend of lightweight agility and long-travel prowess that hits the all-mountain sweet spot.

Product Details:

- Ultralight Hollow Core Carbon Frame
- Powerfully Smooth Bosch Performance Line CX Motor, CX Race Motor on Team Builds
- Long-range 750Wh Battery on Team and Pro Builds, 625Wh battery on Ride Builds
- Bosch 250wh PowerMore Range Extender Compatible
- Integrated Power and Mode Display
- Wheel Mounted Speed Sensor
- Wireless Bosch Remote
- 160mm Fox Factory and Performance 36 Forks
- Flip-Chip Upper Link Mount
- Mixed Wheel Compatible
- Pivot Dock Tool System Compatible
- Water Bottle Clearance on All Sizes
- Fox Factory Float X Shock with 148mm of Progressive Suspension Travel
- Injection Molded Rubberized Frame Protection
- Full Internal Routing with Pivot Cable Port System

Sizes:
SizeSmallMediumLargeX-Large
Geometry Position Low / High Low / High Low / High Low / High
Seat Tube Length (C-T) (cm) 37.8 39.9 43.2 47
Top Tube Length (cm) 59.9 / 59.8 63.1 / 63 64.9 / 64.7 67.1 / 67
Head Tube Length (cm) 11 12 13 14
Head Tube Angle 64.1° / 64.5° 64.1° / 64.5° 64.1° / 64.5° 64.1° / 64.5°
Seat Tube Angle 76.4° / 76.8° 76.4° / 76.8° 76.4° / 76.8° 76.4° / 76.8°
Chainstay Length (cm) 44.4 44.4 44.4 44.4
Bottom Bracket Height (cm) 34.5 / 35 34.5 / 35 34.5 / 35 34.5 / 35
Bottom Bracket Drop (cm) 2.9 / 2.4 2.9 / 2.4 2.9 / 2.4 2.9 / 2.4
Standover (cm) 71.5 / 72 71.5 / 72 71.5 / 72 71.5 / 72
Wheelbase (cm) 121.7 / 121.6 125.1 / 125 127 / 126.9 129.5 / 129.4
Stack (cm) 63.2 / 62.9 64.2 / 63.8 65.1 / 64.7 66 / 65.6
Reach (cm) 43.1 / 43.5 46.1 / 46.5 47.6 / 48 49.6 / 50
Sizes:
Frame SizeRider Height (in)
Small 5'2" – 5’7"
Medium 5'7" – 5'11"
Large 5'10" – 6'2'
X-Large 6'1" +

Specs

Frame Shuttle AM
Fork Fox Factory 36 29", 44mm offset, GRIP X2 - 160mm
Rear Shock Fox Factory Float X
Wheels DT Swiss Hybrid HXC1501 Carbon, 30mm - 29" 15x110 F/12x157 R
Tires Front: Maxxis Minion DHF 29" x 2.5" WT, TR, 3C, EXO+, MAXXTERRA
Rear: Maxxis Minion DHRII 29" x 2.4" WT, TR, 3C, EXO+, MAXXTERRA
Crankset Praxis Alloy eCranks E-MTB 34t - 160mm
Shifters SRAM AXS Pod Controller
Rear Derailleur SRAM XX Eagle Transmission 12-Speed
Cassette/Freewheel SRAM XX 1297 Eagle Transmission 10-52t
Chain SRAM XX Eagle Flattop 12-Speed
Brakes SRAM Maven Ultimate 4-piston
Rotors SRAM Centerline Centerlock - 200mm
Handlebars Phoenix Race Low Rise Carbon - 780mm (SM-MD), 800mm (LG-XL)
Tape/Grips Phoenix Factory Lock-On
Stem Phoenix Team Enduro/Trail - 45mm
Headset Pivot Precision Sealed Cartridge
Seatpost Fox Transfer Factory Series 125-150mm (SM), 155-180mm (MD-LG), 185-210mm (XL)
Saddle Phoenix WTB Team High Tail Trail (SM), Phoenix WTB Pro Volt Medium (MD), Pivot Team E-Bike (LG-XL)
Pedals Sold Separately
Motor Bosch Performance CX Race Edition 750wh

* Subject to change without notice.

Videos

Part Numbers

Option UPC MPN
Blue Neptune / Small / 29-inch 196338211055 00SHTV629CXXB-RBNSSMDRPCNSA1
Blue Neptune / Medium / 29-inch 196338210942 00SHTV629CXXB-RBNSMDDRPCNSA1
Blue Neptune / Large / 29-inch 196338211000 00SHTV629CXXB-RBNSLGDRPCNSA1
Blue Neptune / X-Large / 29-inch 196338210515 00SHTV629CXXB-RBNSXLDRPCNSA1
Mojave Willow Green / Small / 29-inch 196338210447 00SHTV629CXXB-RMWGSMDRPCNSA1
Mojave Willow Green / Medium / 29-inch 196338210430 00SHTV629CXXB-RMWGMDDRPCNSA1
Mojave Willow Green / Large / 29-inch 196338210454 00SHTV629CXXB-RMWGLGDRPCNSA1
Mojave Willow Green / X-Large / 29-inch 196338210409 00SHTV629CXXB-RMWGXLDRPCNSA1
